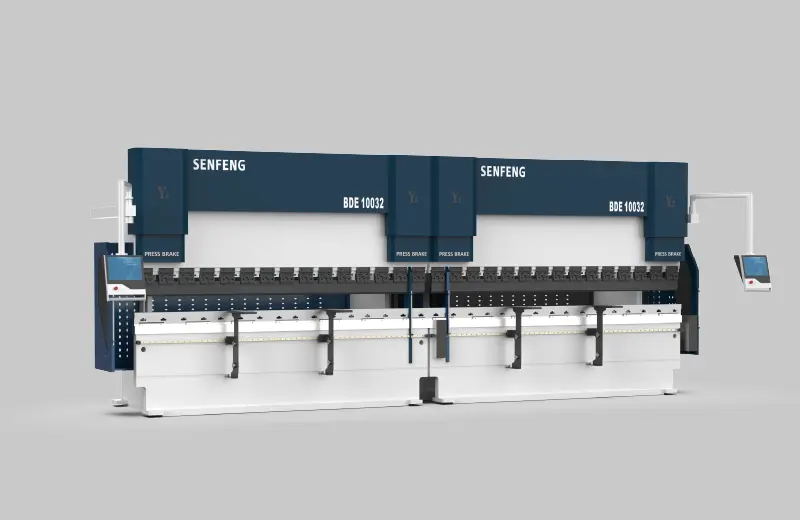

Due to specially designed synchronization device, two bending machines can work concurrently to address the difficulty of bending ultra-long sheets. Both synchronous operation and working alone are available to provide all users with different chooses.
●Double both bending length and efficiency
●Bending precision unchanged
The machine has multi-axis backgauge and uses worm and worm gear to move up and down, backwards and forwards. 4 backgauge fingers are also attached in order to prevent sheets from sagging and make workpiece bending better.
●Multi-axis backgauge and 4 backgauge fingers
●X-axis speed 500mm/s, 1.5 times faster than others
In order to make bending precision high enough, the system is used for compensating the upper and lower beam in case of flexural deflection by controlling wedge blocks based on actual compensations. With that, it is good to bridge the difference between bending sheets tellingly.
●Several sets of wedge blocks
●Lots of compensation points
●No compensation dead zone
Five-axis linkage CNC system has 10.1-inch TFT touch screen with high resolution and true color. It can take real-time control of all core components. Its user interface is simply designed and graphical programming is easy to be done.
● Hot-key touch navigation
●Special library of bending tools and materials
●Advanced Y-axis algorithm for open- and closed-loop control
●Reserve USB memory interface
Model
BDE10032
Maximum bending force
1000KN
Side rack spacing（B）
2600mm
Throat depth（E）
400mm
Bending length（A）
3200mm
Maximum cylinder stroke
200mm
Dimensions（L*W*H）
3700*1595*2650 mm
Main motor power
7.5kW
Weight
6600KG
Speed
Get down speed:180mm/s
Working speed: 0-10m/s
Return speed: 160mm/s
The distance between the table and the upper beam（D）
480mm
Bending thickness (Note: calculated by bending length of 3000mm)
≤ 3 mm carbon steel
≤ 2mm stainless steel
≤4.5mm aluminum
